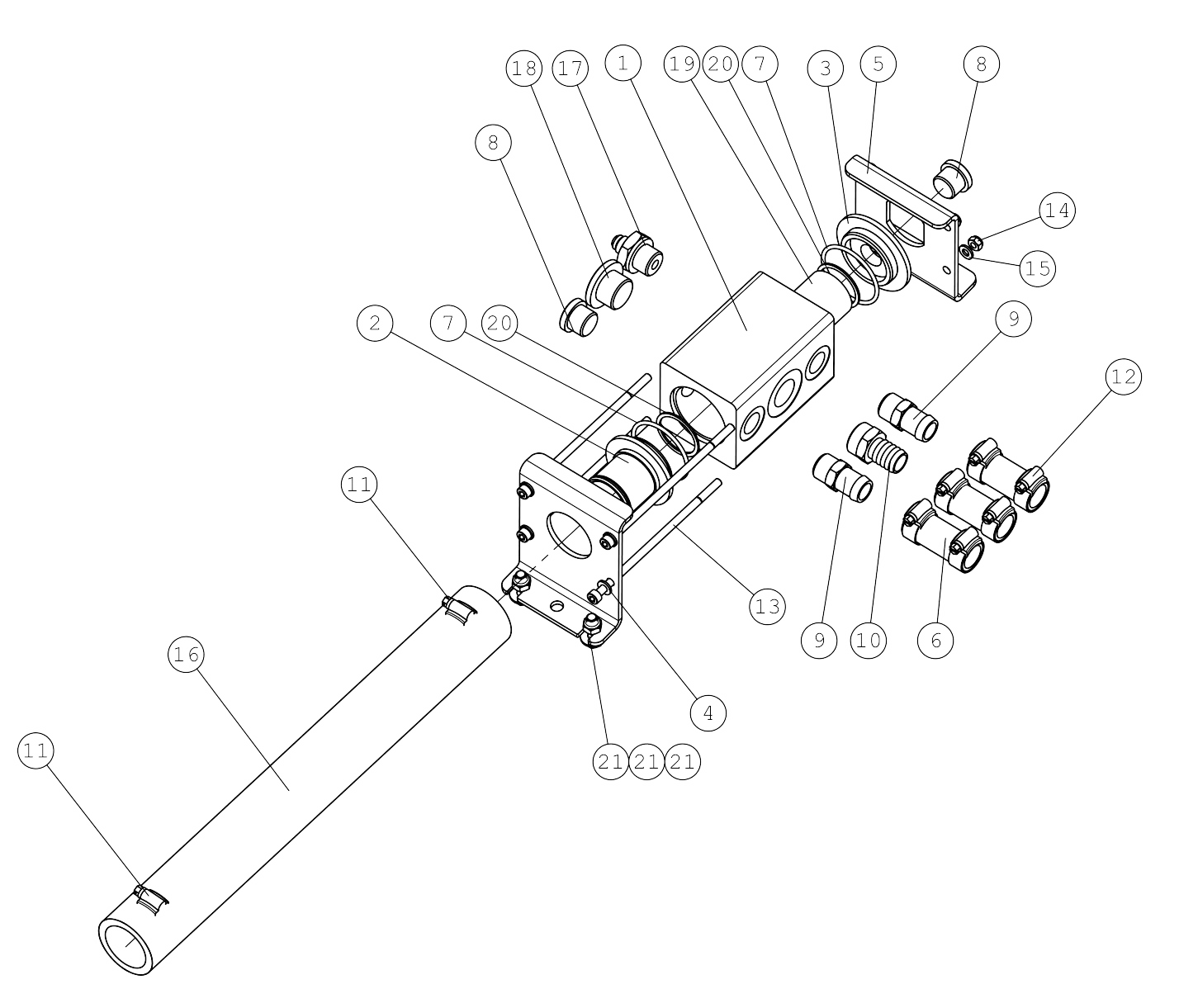

HYDRAULIC MANIFOLD
Názov
POS
PART NO
QTY
Cena
6254
HYDRAULIC MANIFOLD
HYDRAULIC MANIFOLD
POS:
1
PART NO:
A47181
QTY:
1
6255
SUCTION PIPE, MANIFO
SUCTION PIPE, MANIFO
POS:
2
PART NO:
A47256
QTY:
1
6256
PLUG
PLUG
POS:
3
PART NO:
A47257
QTY:
1
6257
BRACKET, FRONT, HYDR
BRACKET, FRONT, HYDR
POS:
4
PART NO:
A47254
QTY:
1
6258
BRACKET, REAR, HYDRA
BRACKET, REAR, HYDRA
POS:
5
PART NO:
A47255
QTY:
1
6259
INLET HOSE D=20 L=25
INLET HOSE D=20 L=25
POS:
6
PART NO:
A47767
QTY:
3
6260
O-RING NBR F 50,2 *
O-RING NBR F 50,2 *
POS:
7
PART NO:
74739
QTY:
2
6261
HEXAGONAL DRAIN PLUG
HEXAGONAL DRAIN PLUG
POS:
8
PART NO:
64174
QTY:
2
6262
HOSE BARB R1/2“UK -
HOSE BARB R1/2“UK -
POS:
9
PART NO:
64110
QTY:
2
6263
HOSE BARB R3/4“UK -
HOSE BARB R3/4“UK -
POS:
10
PART NO:
64915
QTY:
1
6264
HOSE CLAMP ABA 44-56
HOSE CLAMP ABA 44-56
POS:
11
PART NO:
64338
QTY:
2
6265
HOSE CLAMP 22-32 MM
HOSE CLAMP 22-32 MM
POS:
12
PART NO:
73530
QTY:
6
6266
HEXAGON. HEAD SCREW
HEXAGON. HEAD SCREW
POS:
13
PART NO:
74743
QTY:
4
6267
HEXAGONAL NUT M 6 DI
HEXAGONAL NUT M 6 DI
POS:
14
PART NO:
72318
QTY:
4
6268
WASHER M6 DIN 125
WASHER M6 DIN 125
POS:
15
PART NO:
71680
QTY:
8
6269
INLET HOSE F53/F40-
INLET HOSE F53/F40-
POS:
16
PART NO:
A410028
QTY:
1
6270
BASIC FITTING F40X
BASIC FITTING F40X
POS:
17
PART NO:
64040
QTY:
1
6271
HEXAGONAL PLUG HF-3/
HEXAGONAL PLUG HF-3/
POS:
18
PART NO:
73768
QTY:
1
6272
SUCTION STRAINER
SUCTION STRAINER
POS:
19
PART NO:
A411260
QTY:
1
6273
SEAL RING
SEAL RING
POS:
20
PART NO:
A411261
QTY:
2
