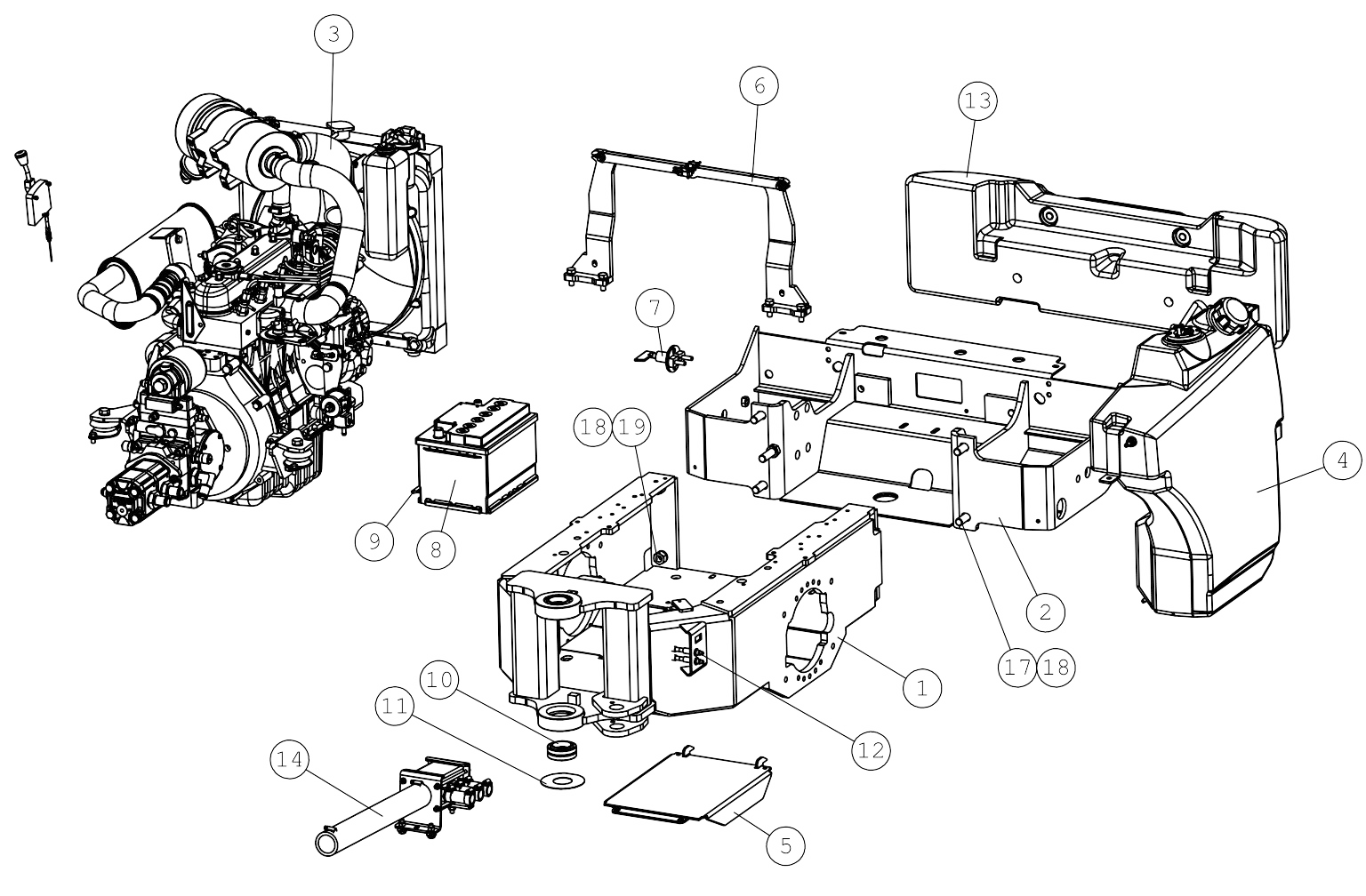

DIESEL ENGINE ASSEMB
Názov
POS
PART NO
QTY
Cena
4417
BACK FRAME, FRONT PA
BACK FRAME, FRONT PA
POS:
1
PART NO:
A21556
QTY:
1
4418
BACK FRAME, REAR PAR
BACK FRAME, REAR PAR
POS:
2
PART NO:
A33331
QTY:
1
4419
DIESEL ENGINE ASSEMB
DIESEL ENGINE ASSEMB
POS:
3
PART NO:
A21752
QTY:
1
4420
FUEL TANK, COMPLETE
FUEL TANK, COMPLETE
POS:
4
PART NO:
A413932
QTY:
1
4421
CLEANING HATCH
CLEANING HATCH
POS:
5
PART NO:
A414786
QTY:
1
4422
LOAD SENSOR SYSTEM,
LOAD SENSOR SYSTEM,
POS:
6
PART NO:
A415984
QTY:
1
4423
BATTERY DISCONNECT S
BATTERY DISCONNECT S
POS:
7
PART NO:
64141
QTY:
1
4424
BATTERY 12V 60AH 430
BATTERY 12V 60AH 430
POS:
8
PART NO:
64844
QTY:
1
4425
BRACKET, BATTERY
BRACKET, BATTERY
POS:
9
PART NO:
A47372
QTY:
1
4426
ARTICUL. BEARING GE4
ARTICUL. BEARING GE4
POS:
10
PART NO:
64911
QTY:
2
4427
SHIM RING S=1 MM, AR
SHIM RING S=1 MM, AR
POS:
11
PART NO:
A48263
QTY:
1
4428
GREASE HOSE, ARTICUL
GREASE HOSE, ARTICUL
POS:
12
PART NO:
A418709
QTY:
2
4429
REAR WEIGHT (BUMPER)
REAR WEIGHT (BUMPER)
POS:
13
PART NO:
A36909
QTY:
1
4430
HYDRAULIC MANIFOLD 7
HYDRAULIC MANIFOLD 7
POS:
14
PART NO:
A37253
QTY:
1
4431
HEXAGONAL SCREW M10*
HEXAGONAL SCREW M10*
POS:
15
PART NO:
73040
QTY:
2
4432
SPACER NORDLOCK M10,
SPACER NORDLOCK M10,
POS:
16
PART NO:
74531
QTY:
2
4433
HEXAGONAL SCREW M16*
HEXAGONAL SCREW M16*
POS:
17
PART NO:
72193
QTY:
6
4434
WASHER, PAIR, M16 NL
WASHER, PAIR, M16 NL
POS:
18
PART NO:
74533
QTY:
10
4435
HEXAGONAL NUT M 16
HEXAGONAL NUT M 16
POS:
19
PART NO:
72329
QTY:
4
